Conical Internal Hexagon implant Ø4,0 PM

157671TCFI4011PMSD-PER-SITO-Impianto-conico-esagono-interno-Ø4,0_7--TRATTAMENTO-28-10-2015-x-graf-.jpg

Conical Internal Hexagon implant Ø4,0 PM

Product codes:
Cod. TCFI4085PMSD for height of 8,5 mm.
Cod. TCFI4010PMSD for height of 10 mm.
Cod. TCFI4011PMSD for height of 11,5 mm.
Cod. TCFI4013PMSD for height of 13 mm.
Cod. TCFI4015PMSD for height of 15 mm.

Straight abutment

Cod. TCFIMD502 - H2
Cod. TCFIMD504 - H4
Cod. TCFIMD506 - H6

Angled abutment 15°

Cod. TCFIMA15°502 - H2
Cod. TCFIMA15°504 - H4
Cod. TCFIMA15°506 - H6

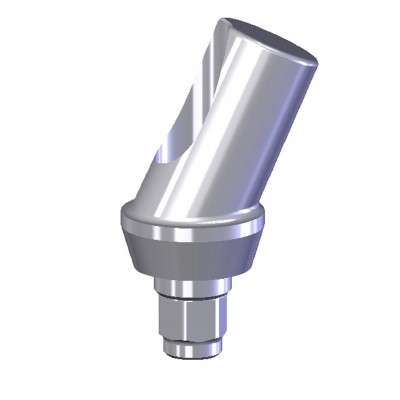

Angled abutment 25°

Cod. TCFIMA25°502 - H2
Cod. TCFIMA25°504 - H4
Cod. TCFIMA25°506 - H6

Castable abutment

Cod. TCFICA50N

Rotating castable abutment

Cod. TCFICA50R

Non-rotating provisional abutment

Cod. TCFIMP50N

Ucla titanium base abutment with cannula

Cod. TCFIUC50N

Rotating provisional abutment

Cod. TCFIMP50R

Ball abutment

​Cod. TCFIMS501 - H1
​​Cod. TCFIMS502 - H2
​​Cod. TCFIMS503 - H3
​​Cod. TCFIMS504 - H4

Ball abutment cap

Cod. MSCAP01

Stainless box for ball abutment cap

Cod. MSCON01

Prosthetic screw

Cod. TCFIVPR

Transfer pick-up techinque

Cod. TCFITR50

Pick-up transfer screw

Cod. TCFIVPL

Transfer pull-up technique

Cod. TCFITRST50

Pull-up screw for internal hexagon implants

Cod. TCFIVTRST

Analogue for implant Ø5,0

Cod. TCFIAN50

Healing screw

Cod. TCFEVG412  - H2
Cod. TCFEVG414  - H4
Cod. TCFEVG416  - H6

Surgical sequence Ø 4.0

For the correct insertion of the conical external hexagon Ø 4.0 implant, we recommend following the surgical protocol:

1. Use the lanceolate drill (TFRLANC) up to the marking (recommended n. revs = 800 rpm).
2. Use the 2 mm start-up drill (TFRC20) with the appropriate stop of the same height as the implant being inserted (recommended n. revs = 800 rpm).
3. Insert the parallelism indicator and check for any disparallelism
4. Use the cylindrical drill Ø 2.8 (TFRC28) with the appropriate stop (recommended n. revs = 200-400 rpm).
5. Use the final cylindrical drill Ø 3.4 (TFRC34) with the appropriate stop (recommended n. revs = 200-400 rpm).
6. In the case of D1 bone density, use the threadformer (TCEIMS40).
7. Insert the implant. Recommended n. of revs 15-25 rpm.
8. Close with the screw cap included in the package.
